Product Introduction:

This adapter can provide the transmission of broadband data service via power line, which are suitable for use in a wide range of both residential (in-home) and commercial (offices, apartments, hotels, warehouses) network applications in which existing power lines can be utilized. There is never any need to install new wires. These adapters enable the effortless creation of a high-speed network that supports video, voice and data.

Feature:

>Universal supply works over a power line voltage range of 85 to 265 VAC, 50~60Hz

>Support QAM 256/64/16,DQPSK,DBPSK and ROBO modulation schemes

>Up to 85 Mbps data rate on the power line

>HomePlug Turbo 1.0 compatible

>56-bit DES Link Encryption with key management for secure power line communications

>Integrated Quality of Service (QoS) features such as prioritized random access, contention-free access, and segment bursting

>Low power consumption

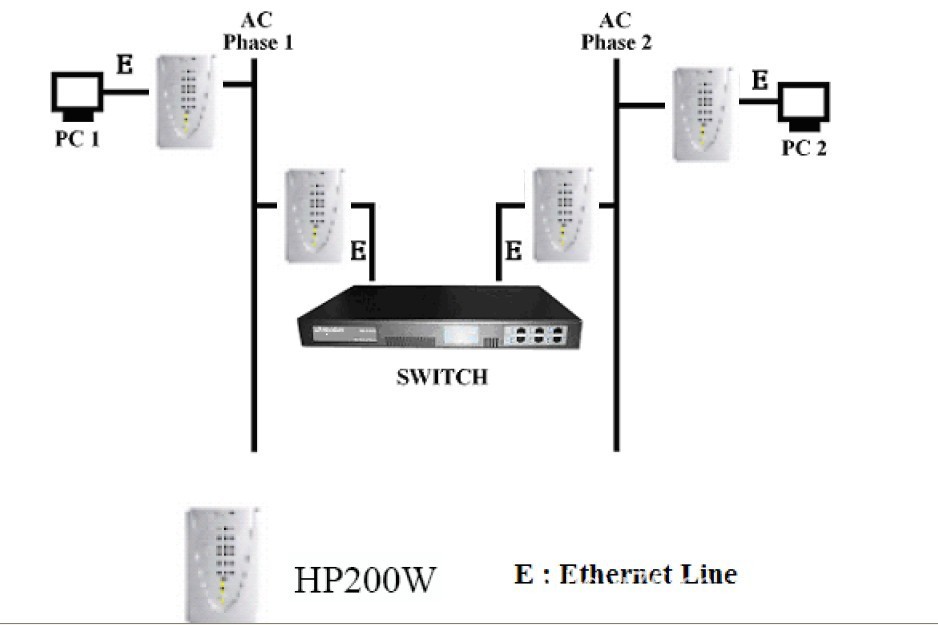

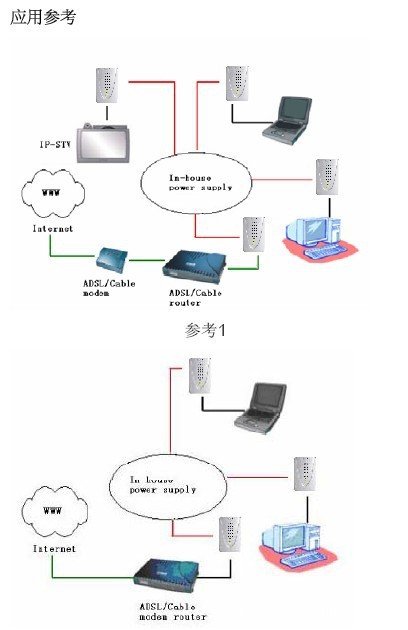

Applications:

>Standard Video TV (SDTV)

>TV over IP (IPTV)

> Voice over IP calls

> Shared broadband internet access

> High data rate broadband sharing

> Audio and video streaming and transfer

>PC file and application sharing

>Printer and peripheral sharing

>Network and online gaming

>Security cameras

External Connectors:

>1 Power jack

>1 10/100M RJ45 Port

產品功能:

電力線寬帶通信，英文縮寫PLC全稱Power　Line Communication，是通過利用傳輸電流的電力線作為通信載體，使你在房間任何有電源插座的地方，即插即用，不用布線，就可和以太網互連并接入Internet。PLC作為一種全新的網絡接入技術，提供寬帶網絡“后100米”的性價比的解決方案，同時PLC可以傳輸各種數據,語音圖像等,普遍適用于居民小區，學校，酒店，寫字樓的組網和上網。

產品特點:>支持85 to 265 VAC, 50~60Hz；

>支持QAM256/64/16，DQPSK，DBPSK，ROBO解調方式 ；

> 85Mbps 傳輸速度；

>符合 HomePlug 1.0傳輸協議；

>具備56位數據加密保護功能；

>隨機存取、免競爭及暴發等QoS功能

>低功耗；

應用:

> SDTV，IPTV，VOIP

> 共享寬帶因特網接入

> 高數據傳輸率的寬帶共享

> 音視頻流傳輸

> 個人電腦文件和應用共享

> 打印機，網絡在線游戲，攝像機

接口:

> 1個電源插座；

> 1個10/100 M RJ45 接頭；
