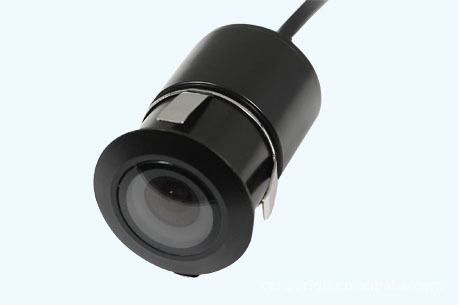

2014廠家供應車飾界 卡式車載攝像頭-21 車載高清攝像頭

Ip rating Ip66
　Images Sensors 1/3" COLOR CMOS
　TV System PAL/NTSC
　Effective Pixels 628X582/628X512
　Sensing Area(mm) 30X40 Resolution(TV Lines) 420
　Min.IIIumination(Lua/F1.2) 0
　Horizontal Sync.Frequency(KHZ) 15.625/15.734
　Vertical Sync.Frequency(HZ) 50/60
　Video Output: 75 Ohm Gamma Consumption: 0.45
　AGC: Auto BLC : Auto
　S/N ratio : Better than 48dB
　Lens: F=2.8mm/F=3.6 Lens Angle(Deg.) : 120°
　Current Consumption(mA) : 200 Power Supply(DCV) 12
　Operating Temperature(Deg.C): -20゛ 75(RH95% Max.)
　 Storage Temperature(Deg.C) : -30゛ 85(RH95% Max.)

*********************************************************************************************************************************************************************************************************************************

**********************************************************************************************************************************************************************************************************************************

**************************************************************************************************************************************************************************************************************************
